Description

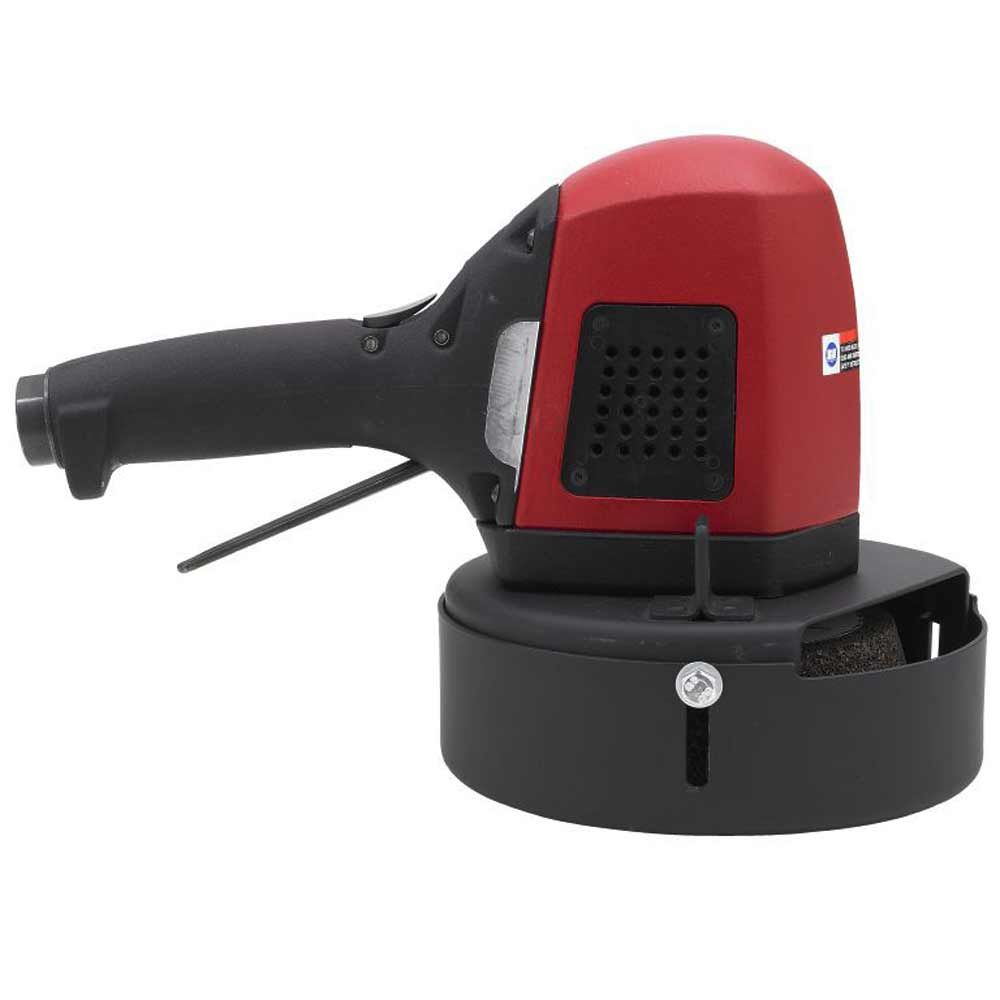

Chicago Pneumatic CP3349-SALAVET Features:
- Overspeed prevention device included
- Built-in lubricant tank
- Double action safety lever
- Robust housing
- 6″ (150 mm) cup wheel capacity
- 4 hp (3,000 W) high performance governed motor
- 6,000 rpm free speed
- ANSI compliant for NA markets
Chicago Pneumatic CP3349-SALAVET Benefits:
- Industrial vertical wheel grinder
- Highest durability in demanding applications up to 2,000 hours maintenance intervals
- Superior torque for maximal productivity
Chicago Pneumatic CP3349-SALAVET Specifications:
- Part number: 6151609080
- Model: CP3349-SALAVET
- Spindle thread: 5/8-11
- Wheel size: 6″: 150 mm
- Cup wheel Diam.: 6″: 150
- Collet size: Vertic.: Vertic.
- Free speed: 6000 rpm
- Power: 4 hp: 3000 W
- Length: 11″: 280 mm
- Net weight: 9.7 lb: 4.4 kg
- Sound pressure: 84 db(A)
- Sound Power: 95 db(A)
- Vibration α (ISO-28927-1): <2.5 m/s²
- Vibration K (ISO-28927-1): – m/s²
- Actual air consumption: 91 cfm:
- Free speed air consumption: 25 cfm:
- Min. hose size: 5/8″: 15 mm
- Air inlet thread size: 1/2
